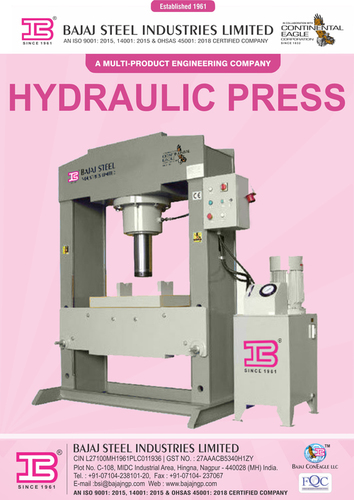

Textile Baling Press
Technical Specifications:
Machine Type | Hydraulic Baling Press |
Hydraulic Cylinder | Double Acting |
Operating Pressure | Max. 210 Bars |
Pressure Load | Max. 40 Tons |
Stroke | 150 mm to 1450 mm |
Power Consumption | Aprox 6 KWH |
Electric Motor | 9.3 KW (12.5 HP) |
Material Size before Compression | Length 1350 mm |
Width 950 mm | |
Height 1400 mm | |
Weight of Machine | 3.2 Tons approx. |
Overall Dimensions of Machine | Length 1930 mm |
Width 1250 mm | |
Height 4640 mm | |
Bag Quantity | 500-1000 depending on the material |
Note: Do not load bags only on one side | |
![]() |
