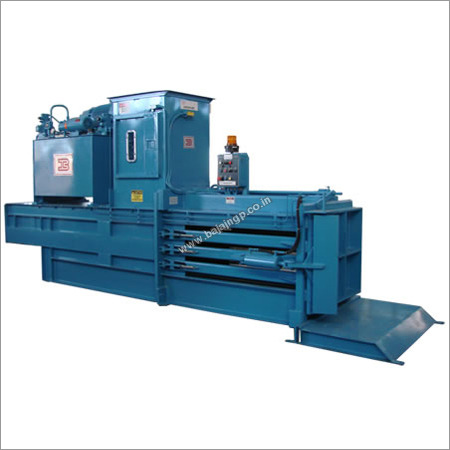

Horizontal Baling Press

Horizontal Baling Press
Horizontal Baling Press
Send Inquiry
Product Code : 05
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
Product Description

Owing to our enormous experience in this industry, we are counted amongst the prominent manufacturers and exporters of Horizontal Baling Press. We have a wide range of presses distinct in capacities to meet the specific requirements of our clients. Our presses are acknowledged for their adjustable bale density switch, improvised working efficiency and warning system for start up and full bale. Horizontal Baling Press offered by us is extensively used in bio mass & textile waste applications.

Features & Benefits For High & Medium Capacity Presses
  • Highest bale density of all similar machines.
  • Largest feed hopper of all similar machines.
  • Feed hopper door with inspection windows, dust seals and interlock.
  • Heavy duty spring loaded retainer dogs.
  • Level sensor at hopper for automatic operation of main ram.
  • Double tie slots in ram to prevent material buildup and also crossing of bale ties.
Technical Specifications

Feed Opening

30"L x 30"W

Box Size

48"L x 30"W x 30"H

Operating Pressure

2700 PSI

Finished Bale Size

55" L x 30"W x 30"H

Stroke Cycle Time (No Load)

20 seconds

Power Consumption

Approx 40 HP

Weight of Machine

3.5 Tons Approx.

Overall Dimensions of Machine

Length 4650 mm

Width 1345 mm

Height 2165 mm

Bale Tiles Required

4 No's


By PLC Panel

Trade Information
  • Supply Ability
  • 10 Unit Per Week
  • Delivery Time
  • 1 Months
